Product Description

1

Overview & Basic Info

Model NO.
CGK030V4P
Work Environment
-25-45℃
Heat Source
Air-source
Heating Type
Water-Circulating Heat Pump
Application
Villa, Hotels, Factory, Hospital, Apartments, Office, Retail
Certification
CE, ISO9001, CCC, CB, RoHS, Mcs, Keymark
Control Method
APP Control
Warranty
3 Years
Package Size
116.50cm * 50.50cm * 96.00cm
Gross Weight
125.000kg
2

Product Description

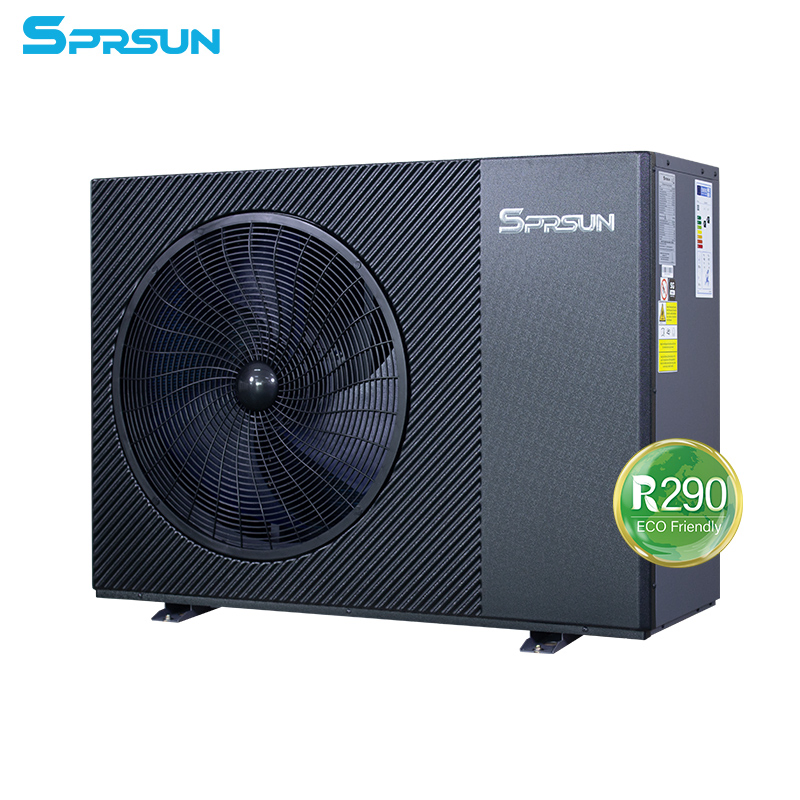

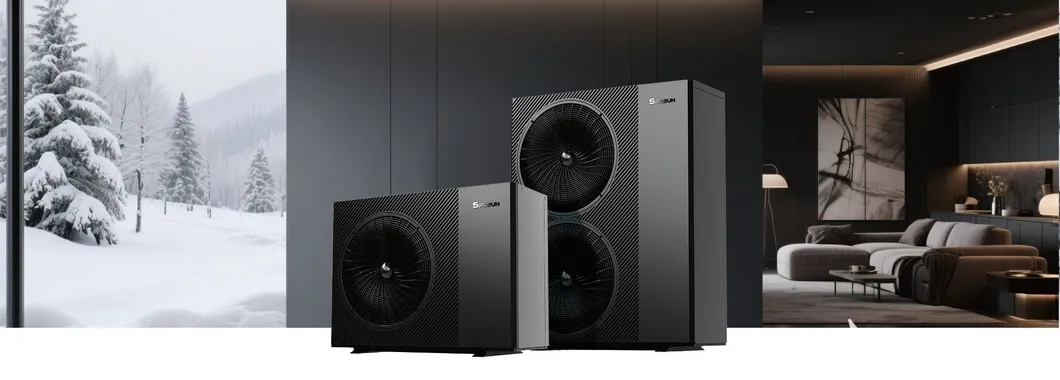

R290 Air to Water Heat Pump

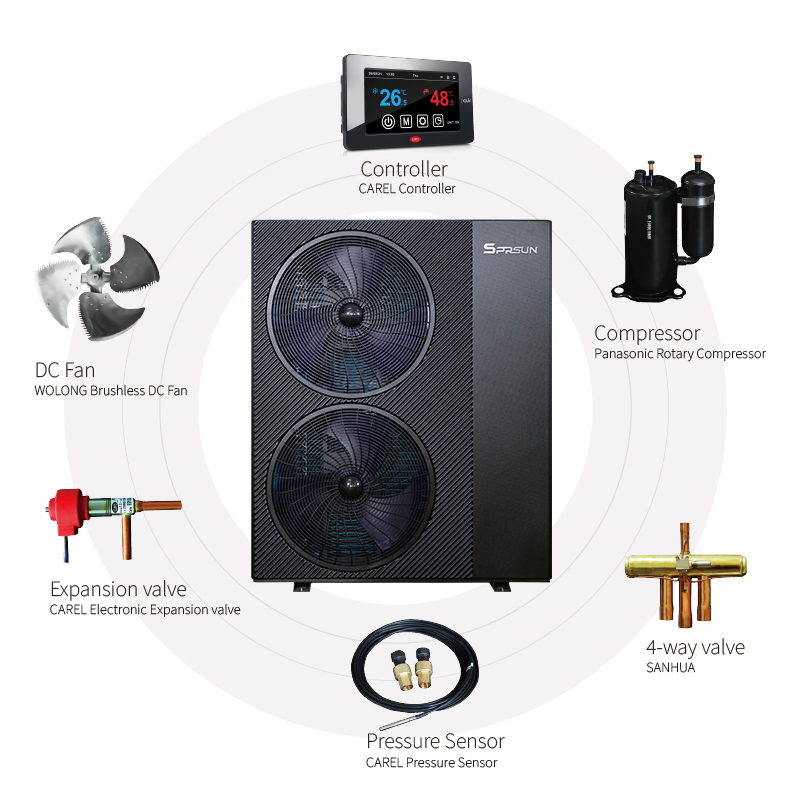

The R290 Heat Pump is designed with a DC Inverter Compressor and DC Inverter Fan Motor to meet stringent requirements for eco-friendliness, efficiency, stability, and quietness. It provides heating, cooling, and domestic hot water in one unit.
  • R290 Refrigerant: Eco-friendly (GWP ≤ 3, ODP = 0), fully compliant with EU environmental regulations.
  • All-in-One Functionality: Heating, Cooling, and 24/7 Domestic Hot Water (DHW).
  • High Efficiency: Achieves ErP A+++ rating at 35ºC outlet temperature.
  • Extreme Stability: Operates stably at temperatures as low as -25ºC.
  • High Temperature: Delivers hot water up to 75ºC for radiators and fan coils.
  • Ultra-Low Noise: Advanced airflow design and noise-reduction engineering.

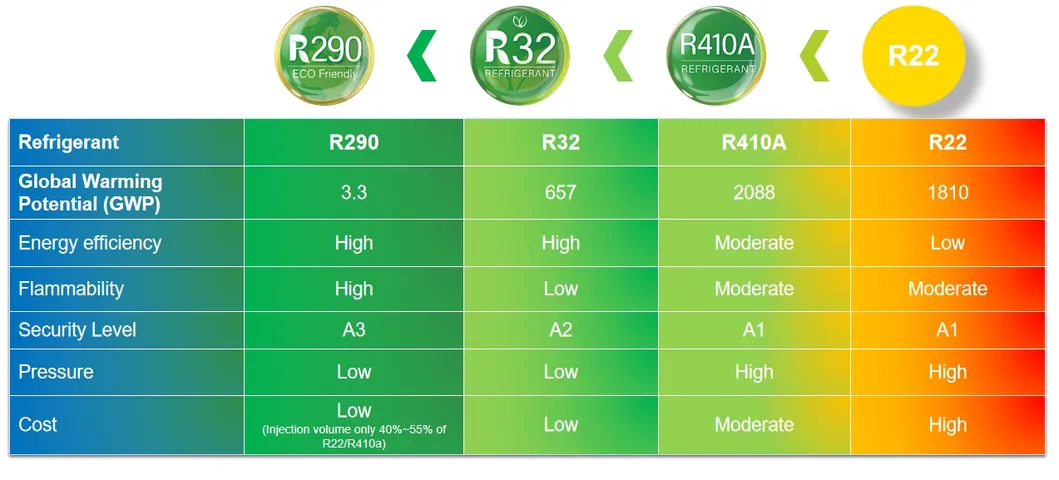

Eco-friendly Refrigerant
All in one functionality
Energy Efficiency
All models come with standard App control and IoT cloud connectivity, enabling users to monitor system performance, adjust modes remotely, and receive intelligent alerts for long-term efficiency.
Noise Performance
Operating Range

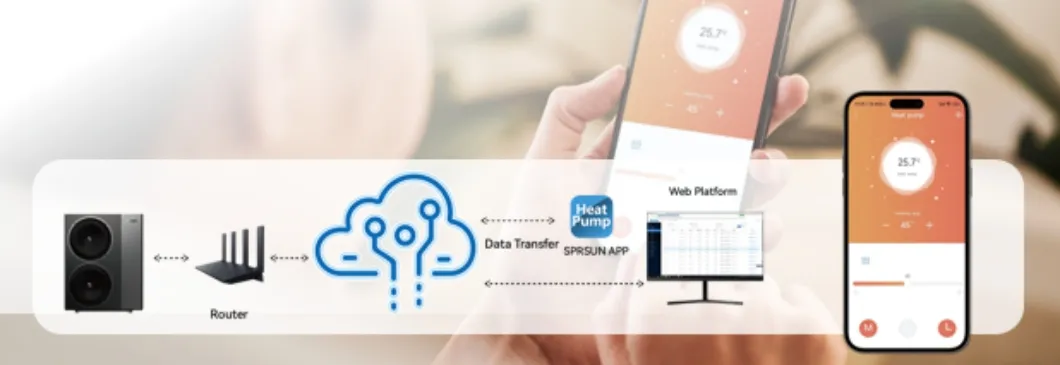

App Control
3

Technical Parameters

Model Parameter Unit CGK030V4P (1Ph) CGK040V4P (1Ph) CGK-030V4P (3Ph) CGK-040V4P (3Ph)
Power SupplyV/Hz220-240/50220-240/50380-420/50380-420/50
Refrigerant-R290R290R290R290
Max. Heating Capacity (A7/W35)kW9.511.59.511.5
C.O.P (A7/W35)W/W4.424.444.424.44
Max. Cooling Capacity (A35/W18)kW8.410.28.410.2
Net Weightkg112125112125
Net Dimension (L×D×H)mm1110*475*8101110*475*9601110*475*8101110*475*960
SCOP (35/55ºC)-4.76/3.624.79/3.664.77/3.64.78/3.63
Energy Efficiency Class-A+++A+++A+++A+++
Operation Ambient TempºC-25~45-25~45-25~45-25~45

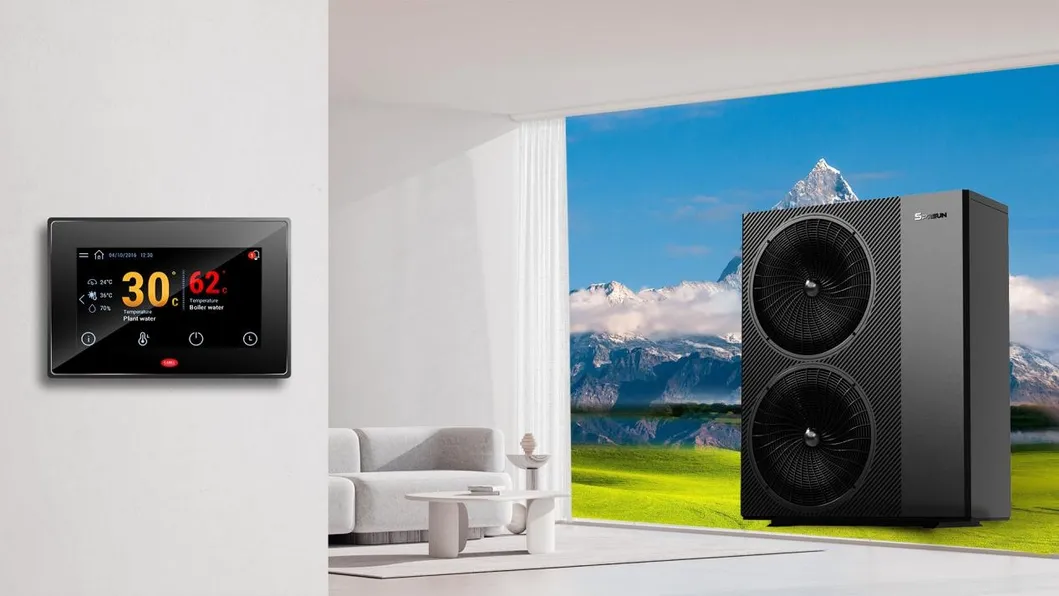

Certification standards

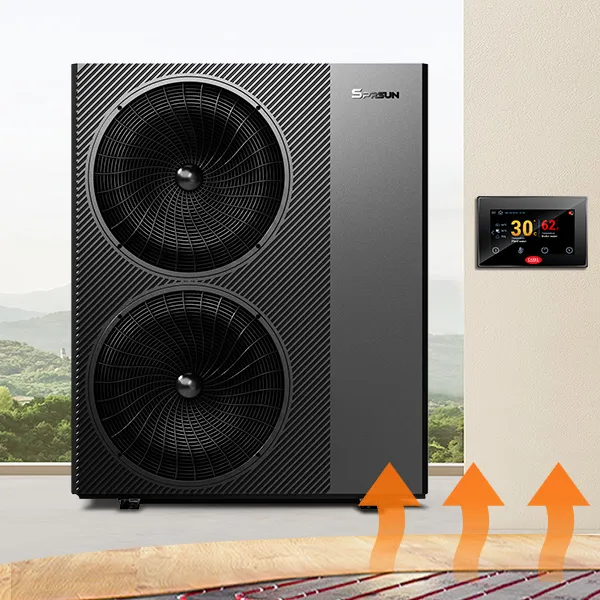

Intelligent control
Professional Production
?

Frequently Asked Questions

What are the environmental benefits of R290 refrigerant?
R290 is a natural refrigerant with a Global Warming Potential (GWP) of less than 3 and zero Ozone Depletion Potential (ODP), making it fully compliant with the latest EU environmental regulations.
How high can the water temperature reach?
This heat pump system can deliver a hot water outlet temperature of up to 75ºC, which is ideal for radiator systems and domestic hot water tanks.
Can this unit work in extremely cold climates?
Yes, the system is engineered to operate stably in ambient temperatures as low as -25ºC, ensuring reliable heating throughout freezing winters.
What functions does the all-in-one system provide?
A single unit provides space heating, space cooling, and domestic hot water (DHW), effectively replacing traditional boilers or split systems.
Is it possible to control the heat pump remotely?
Yes, all models include standard WiFi App control and IoT cloud connectivity, allowing users to monitor performance and adjust settings from anywhere.
What is the energy efficiency rating of this product?
The unit achieves a top ErP rating of A+++ at 35ºC outlet water temperature, ensuring low operating costs and high seasonal performance.
