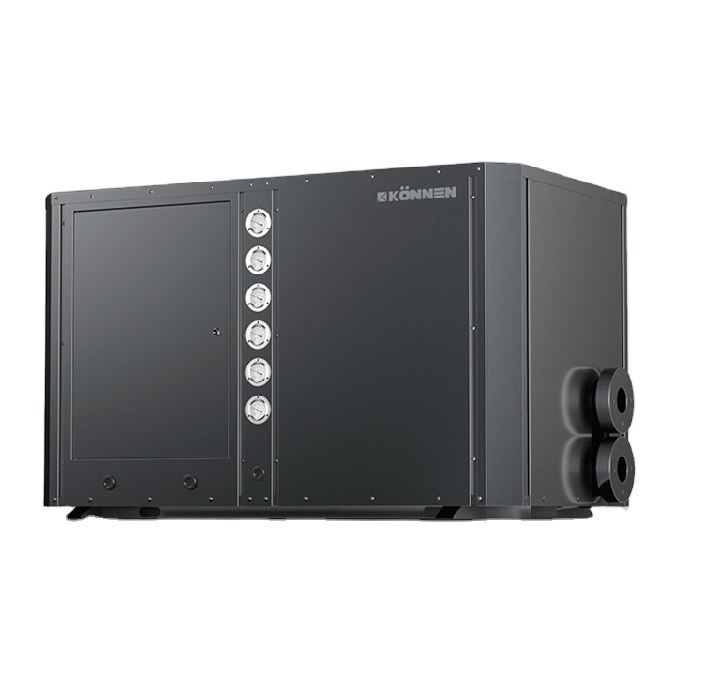

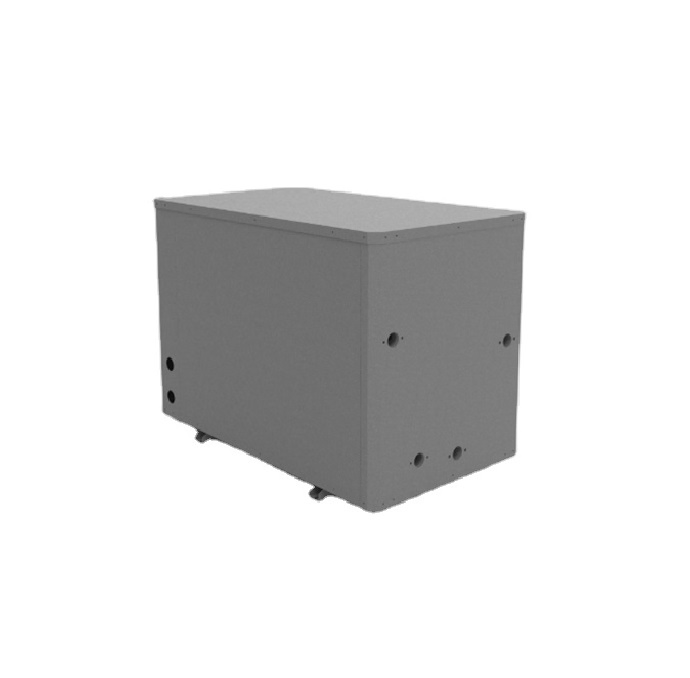

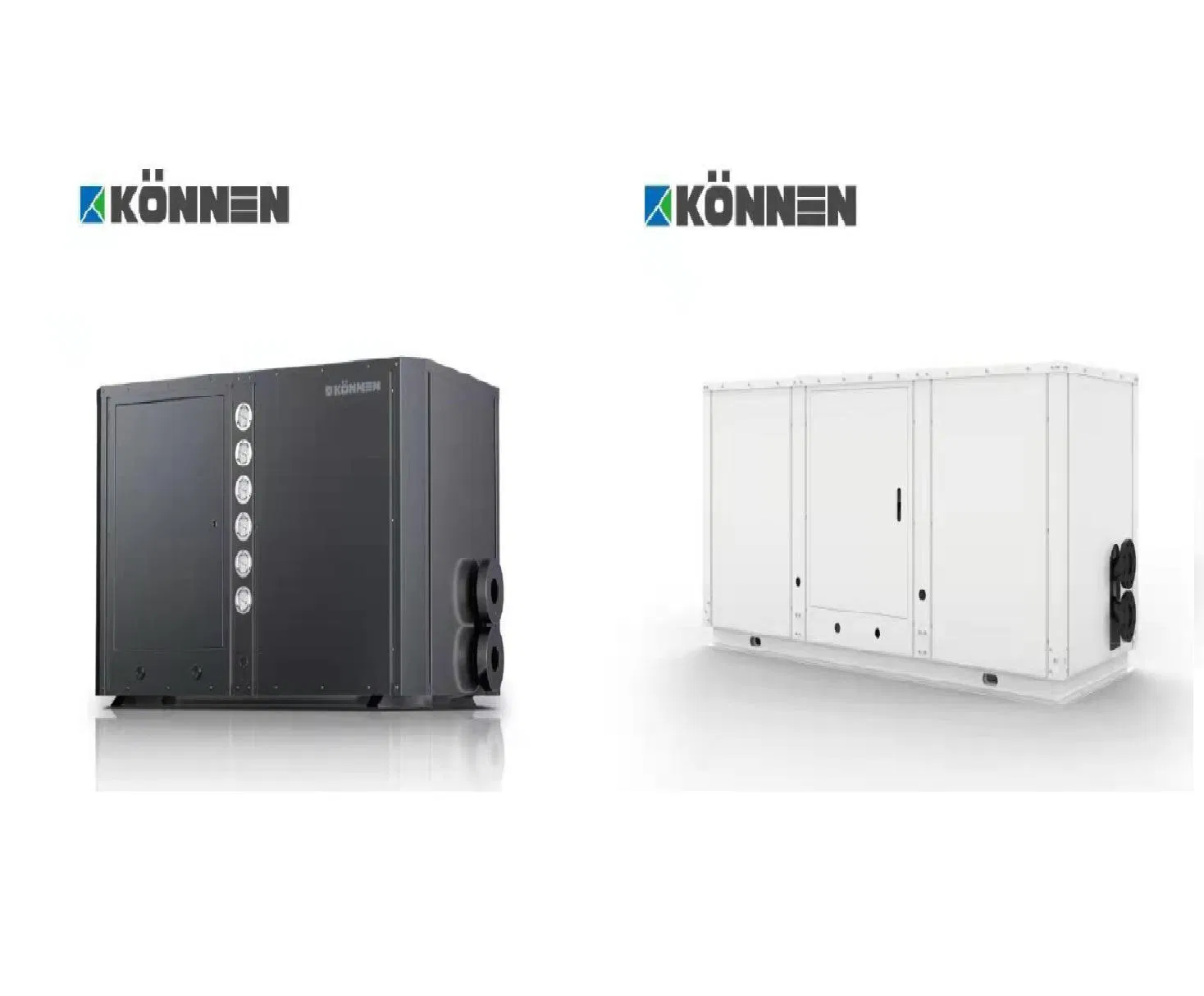

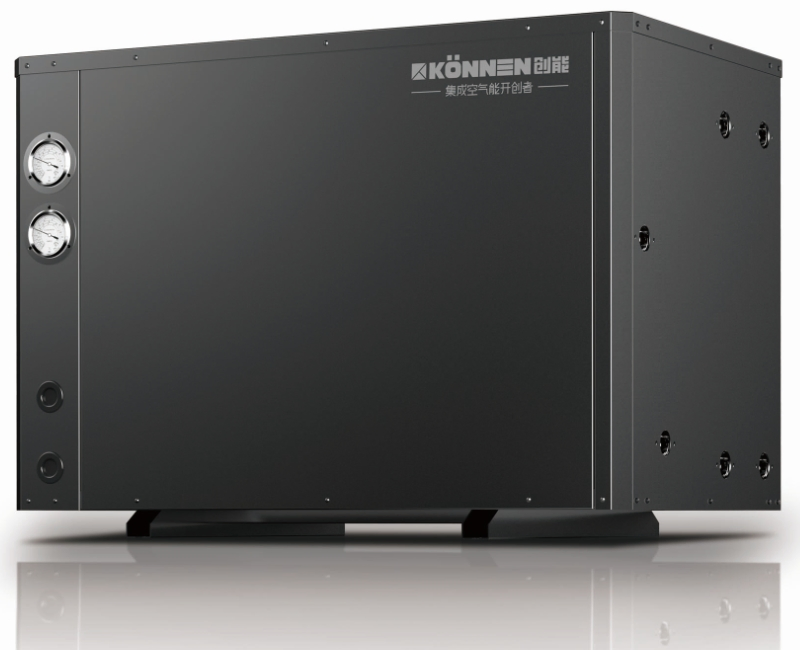

Geothermal Water Source Home Heating Water to Water Heat Pump Water Heater

1 / 5

Geothermal Water Source Home Heating Water to Water Heat Pump Water Heater

Customization:	Available
Heat Temperature:	50-70°C
Work Environment:	Common Heat Pump

Send Inquiry

Product Description

Basic Specifications

Model NO.

CSFXRS

Heat Source

Water-source

Certification

CE, ISO9001

Refrigerant

R410A

Max Temp

60ºC

Rated Temp

55ºC

Origin

China

Capacity

1000 units/Month

Product Description

High Efficiency Water Source Heat Pump System

● Panasonic or Copeland scroll compressor
● Environment-friendly R410a refrigerant
● Saginomiya or Sanhua electronic expansion valve
● Preservative oil coating for important cabinet parts
● Advanced LCD intelligent controller
● Long-term Warranty: 24 months after delivery

Technical Parameters

Model Series (Water Source)		CSFXRS-8I	CSFXRS-12I	CSFXRS-20I	CSFXRS-12II	CSFXRS-20II	CSFXRS-28II	CSFXRS-40II	CSFXRS-55II	CSFXRS-80II	CSFXRS-95II	CSFXRS-120II	CSFXRS-145II	CSFXRS-190II
Rated Heating Capacity	KW	8	12	20	12	20	28	40	55	80	95	120	145	190
Rated Power	KW	1.64	2.41	4.02	2.41	3.91	5.58	7.98	11.07	16.26	19.11	24.44	29.47	39.09
COP	-	4.89	4.98	4.98	4.97	5.12	5.02	5.01	4.97	4.92	4.97	4.91	4.92	4.86
Refrigerant Type	-	R410A
Water Temperature	ºC	Default 50ºC (Adjustable 28-60ºC)
Noise Level	dB(A)	≤52	≤53	≤55	≤55	≤55	≤58	≤58	≤62	≤65	≤65	≤70	≤75	≤75

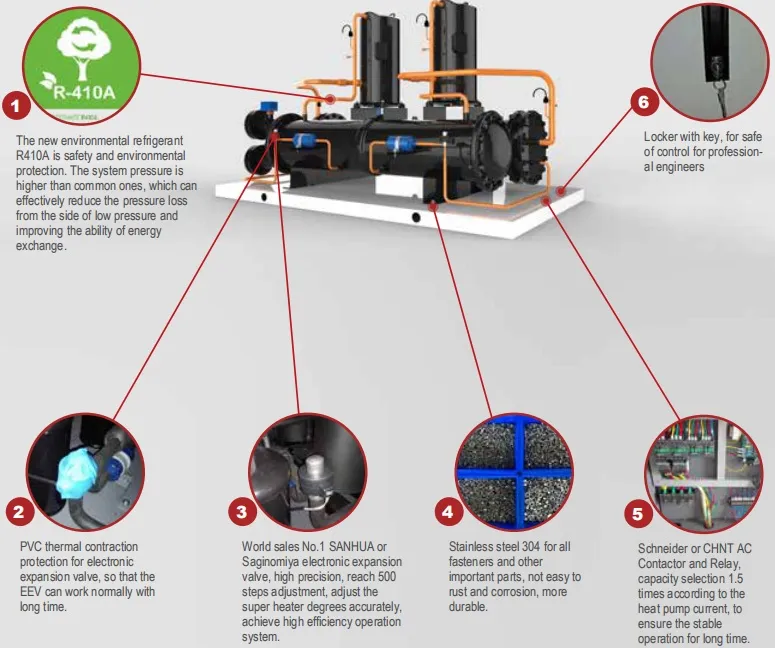

Product Features

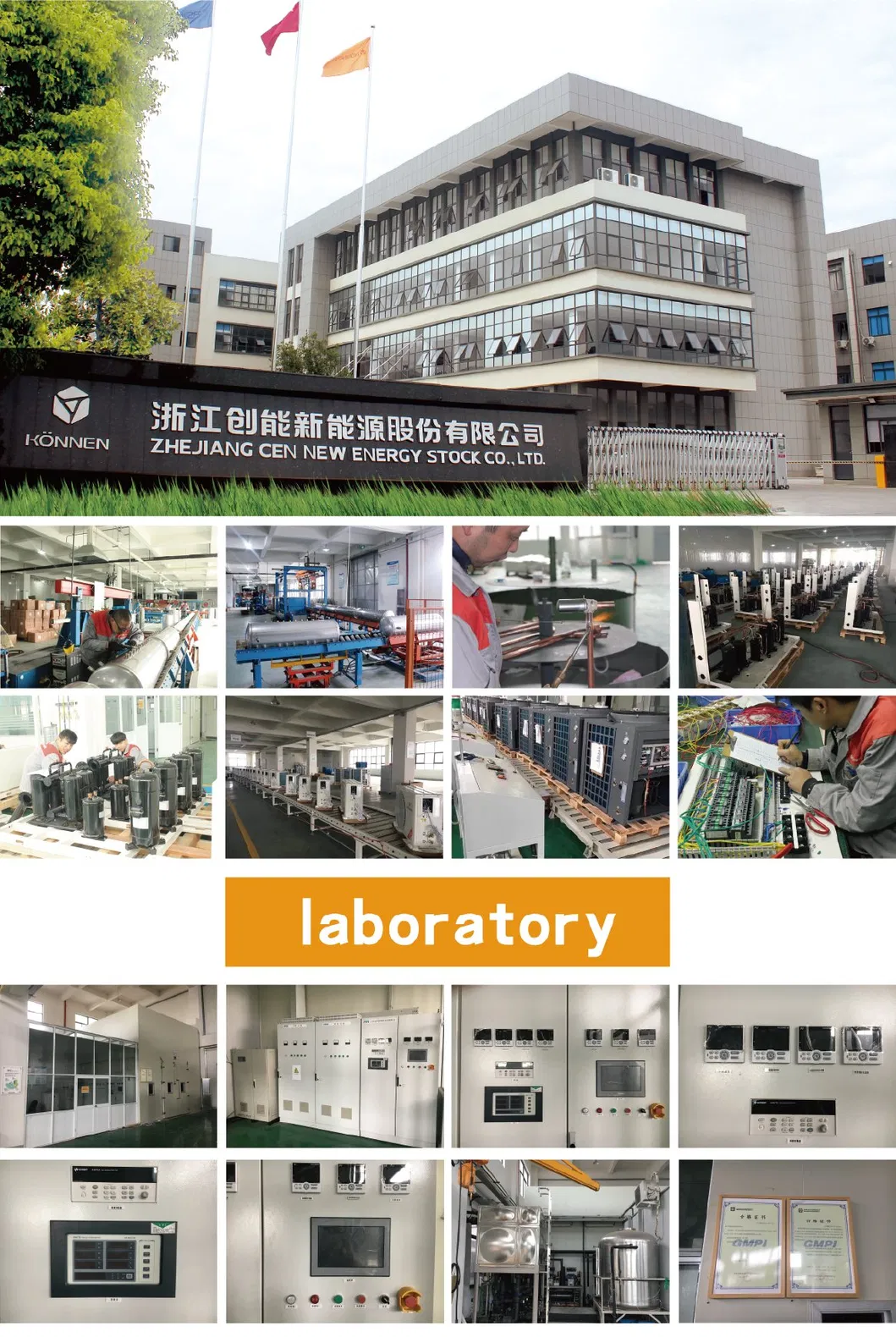

Factory & Production

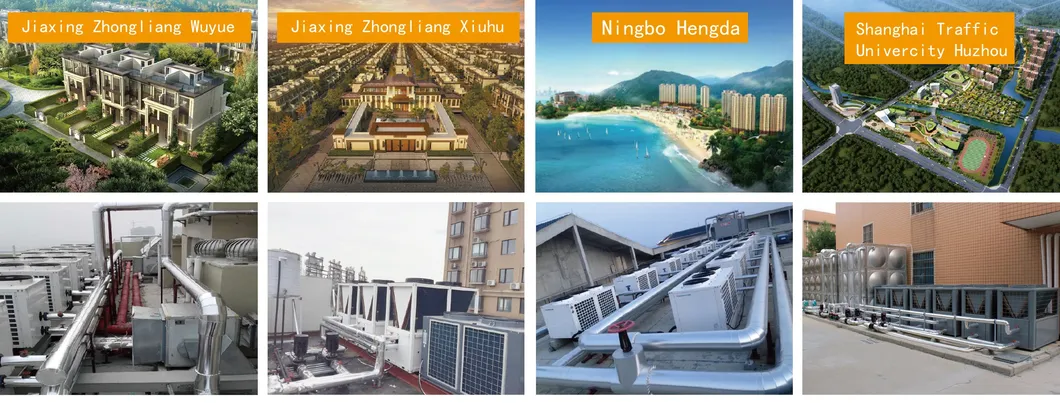

Projects & Applications

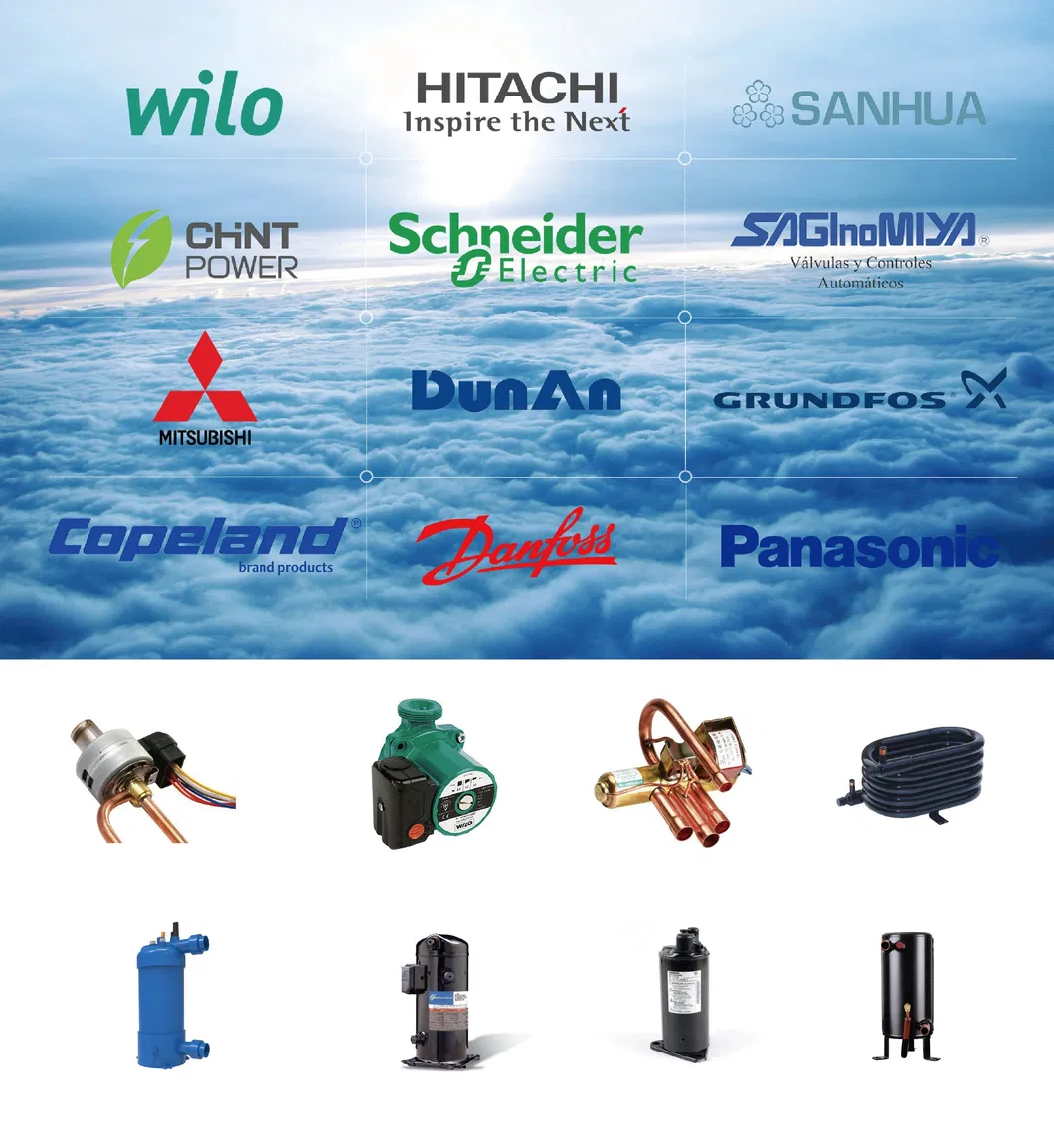

Core Components & Brands

Frequently Asked Questions

❓ What type of compressors are used in these heat pumps?

The units utilize world-famous brand compressors, specifically Panasonic hermetic rotor types or Copeland hermetic scroll types, ensuring high efficiency and durability.

❓ What is the maximum water outlet temperature?

The rated outlet temperature is 55ºC, but it can reach a maximum temperature of 60ºC, which is adjustable between 28-60ºC depending on your needs.

❓ What kind of protection features are included?

The system includes multiple safety protections: high and low pressure protection, anti-freeze protection, high temperature protection, overload protection, and phase lack/reverse protection.

❓ What is the standard warranty period?

We provide a comprehensive warranty of 24 months after the delivery date for all major components of the heat pump system.

❓ Can these units be used for large scale applications?

Yes, with models ranging up to 190KW in heating capacity, they are suitable for Villa families, Hotels, Factory Hospitals, Student Apartments, and Beauty Salons.

❓ Which refrigerant is used in the system?

The systems are optimized for R410A refrigerant, which is efficient and compliant with international environmental standards.
