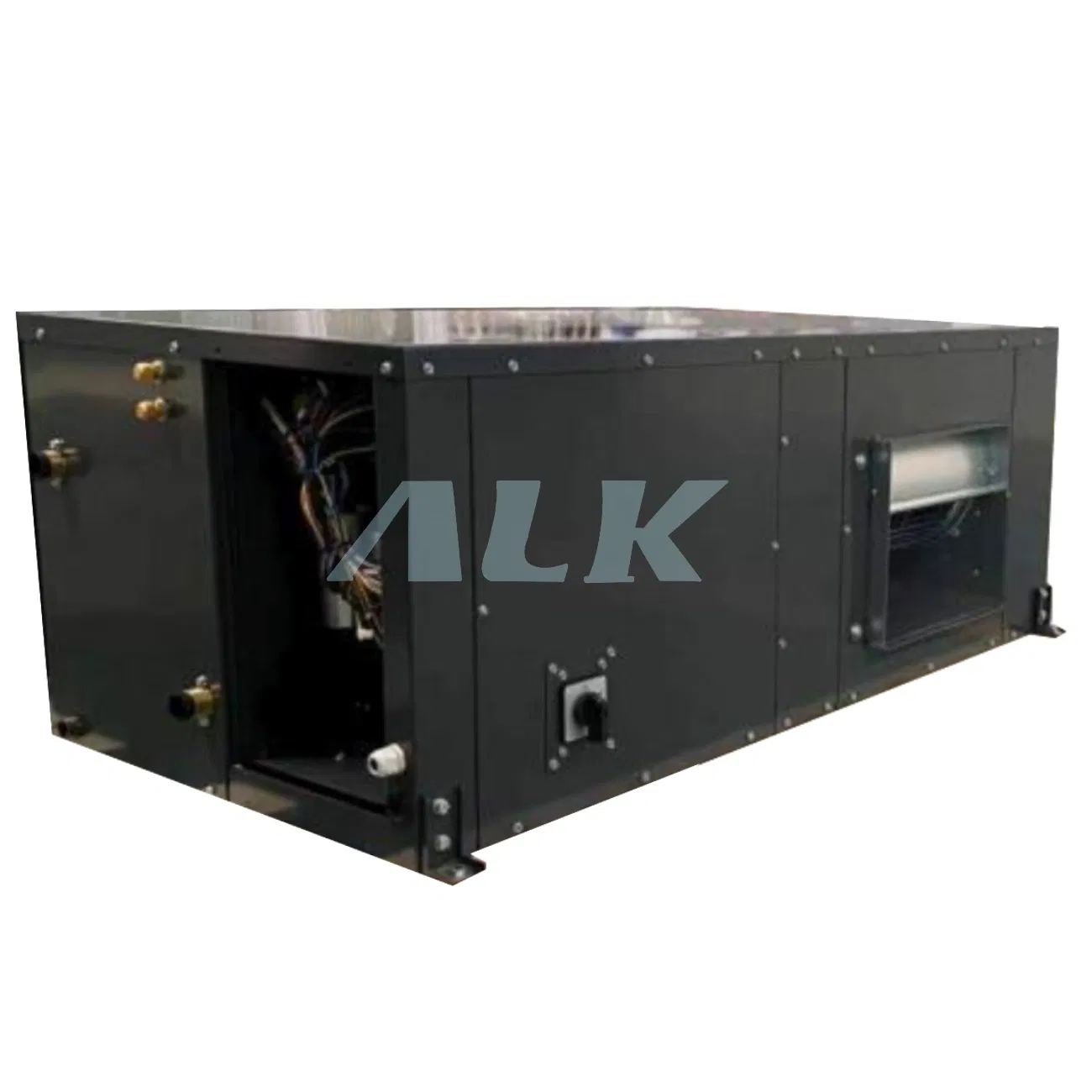

STRUCTUREPanels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSORSingle phase rotary type and 3-phase scroll compressor, with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
CENTRIFUGAL FANForward centrifugal fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, three speeds.
CONDENSERHigh efficiency tube in tube heat exchanger, factory insulated with flexible close cell material.
EVAPORATORCoils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
DESUPERHEATER (Optional)High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material.

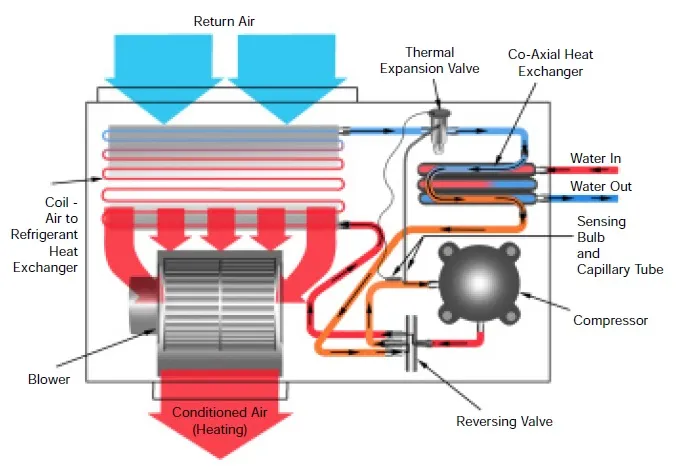

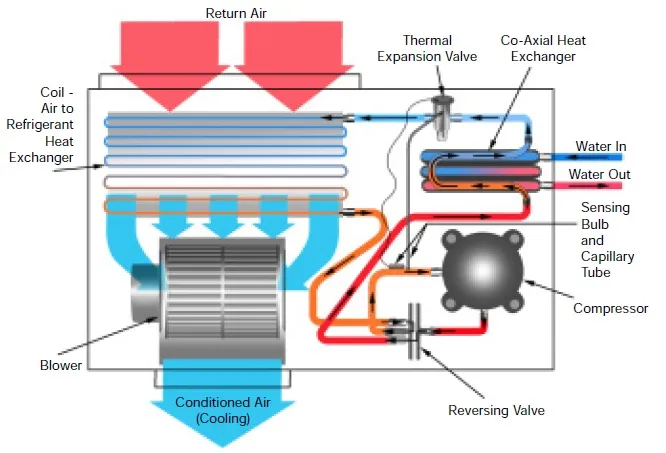

REFRIGERANT CIRCUITCopper tube connection with charge valve, filter, sight glass, gas-liquid separator, thermostatic expansion valve, low/high pressure switch. Heat pump unit includes 4-way valve and liquid receiver.
HYDRONIC CIRCUITBuilt with air vent valve, water drain connection, and female-threaded hydraulic connectors.
ELECTRIC PANELCompressor and control circuit protection; Phase sequence relay; Programmable microprocessor controller (MODBUS included for BMS connection).
OPTIONAL FUNCTIONElectric heater for heating is an option in cooling-only systems, added between the cooling coil and fan.
