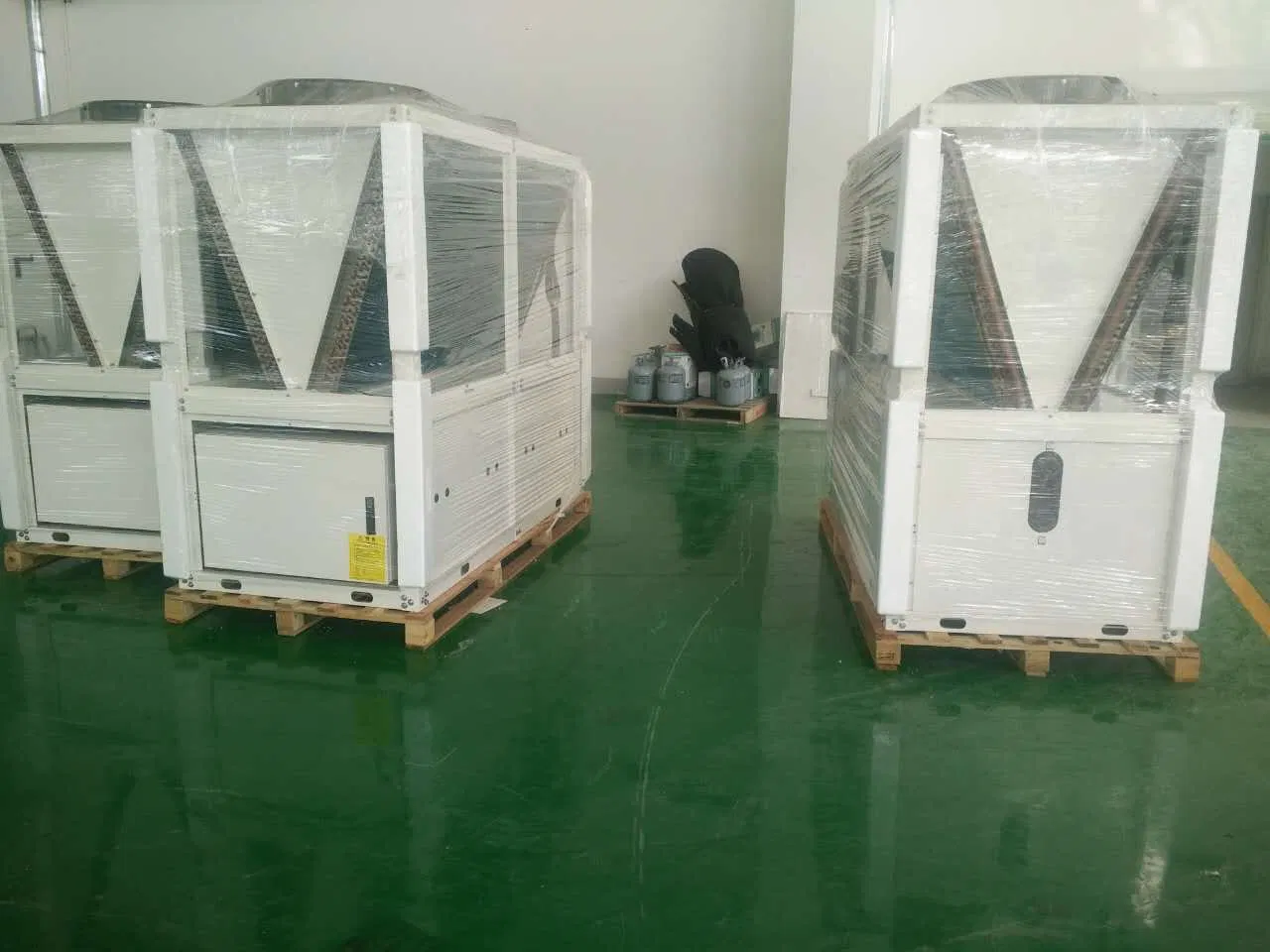

Air Source Heat Pump Water Heater for Commercial Use with CE Approved 35kw

1 / 5

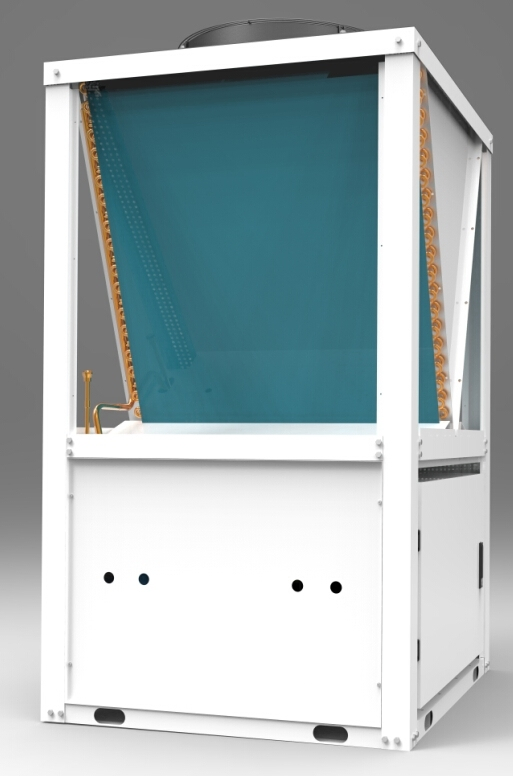

Air Source Heat Pump Water Heater for Commercial Use with CE Approved 35kw

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CKFXRS-35II

Heat Source

Air-source

Application

Sauna and Swimming Pool

Certification

CE, ISO9001

Usage

Swimming Pool

Heating Capacity

120kw

Product Name

Water Heater Stainless steel Swimming Pool Heat Pump

Refrigerant

R410A

Compressor

SANYO

Production Capacity

20 units /Month

Product Description

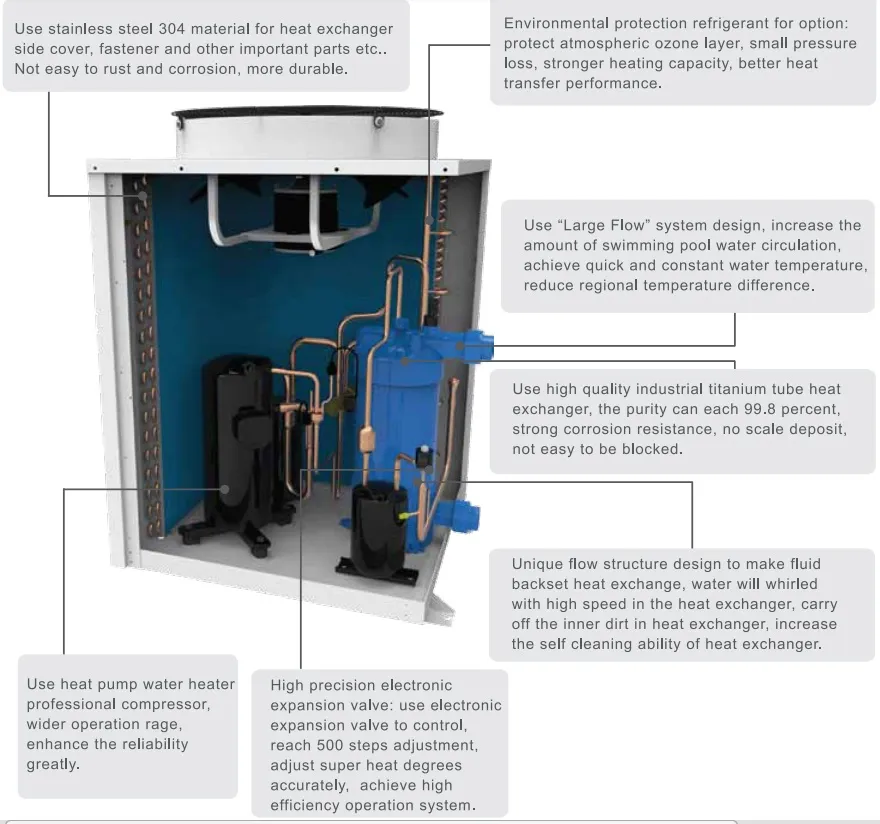

SWIMMING POOL HEAT PUMP WATER HEATER FEATURES:

Panasonic or Copeland compressor with R410a refrigerant
Stainless steel 304 for all fasteners and evaporator side covers
Preservative oil for copper tubes and cabinet parts
Chinese No.1 brand "Gimleo" Titanium tube heat exchanger
Japan "Saginomiya" or "Sanhua" electronic expansion valve
"Sanhua" 4-way valve
Schneider AC contactor and relay
LCD controller
Warranty time: 24 months after delivery

We also supply OEM services!

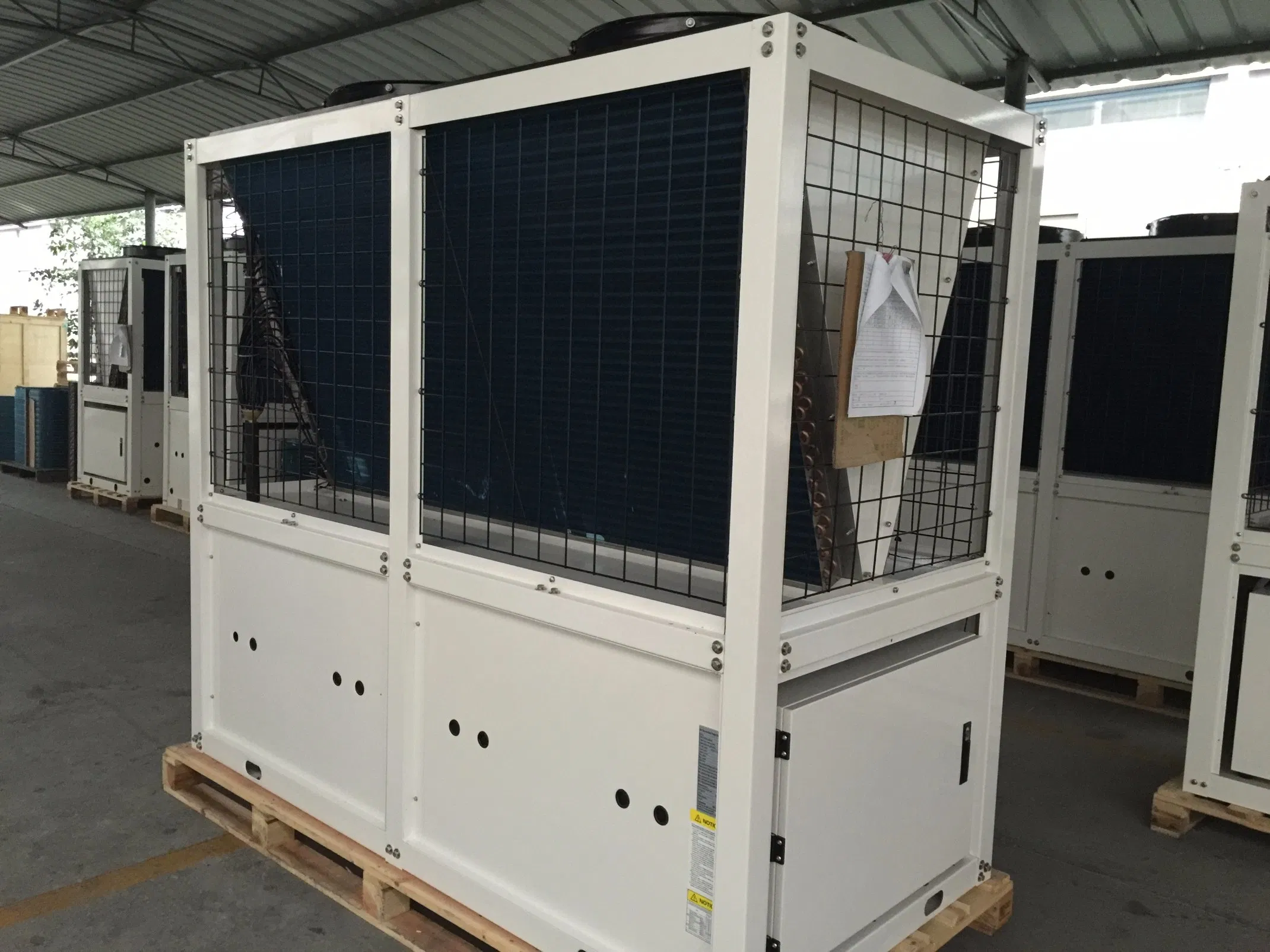

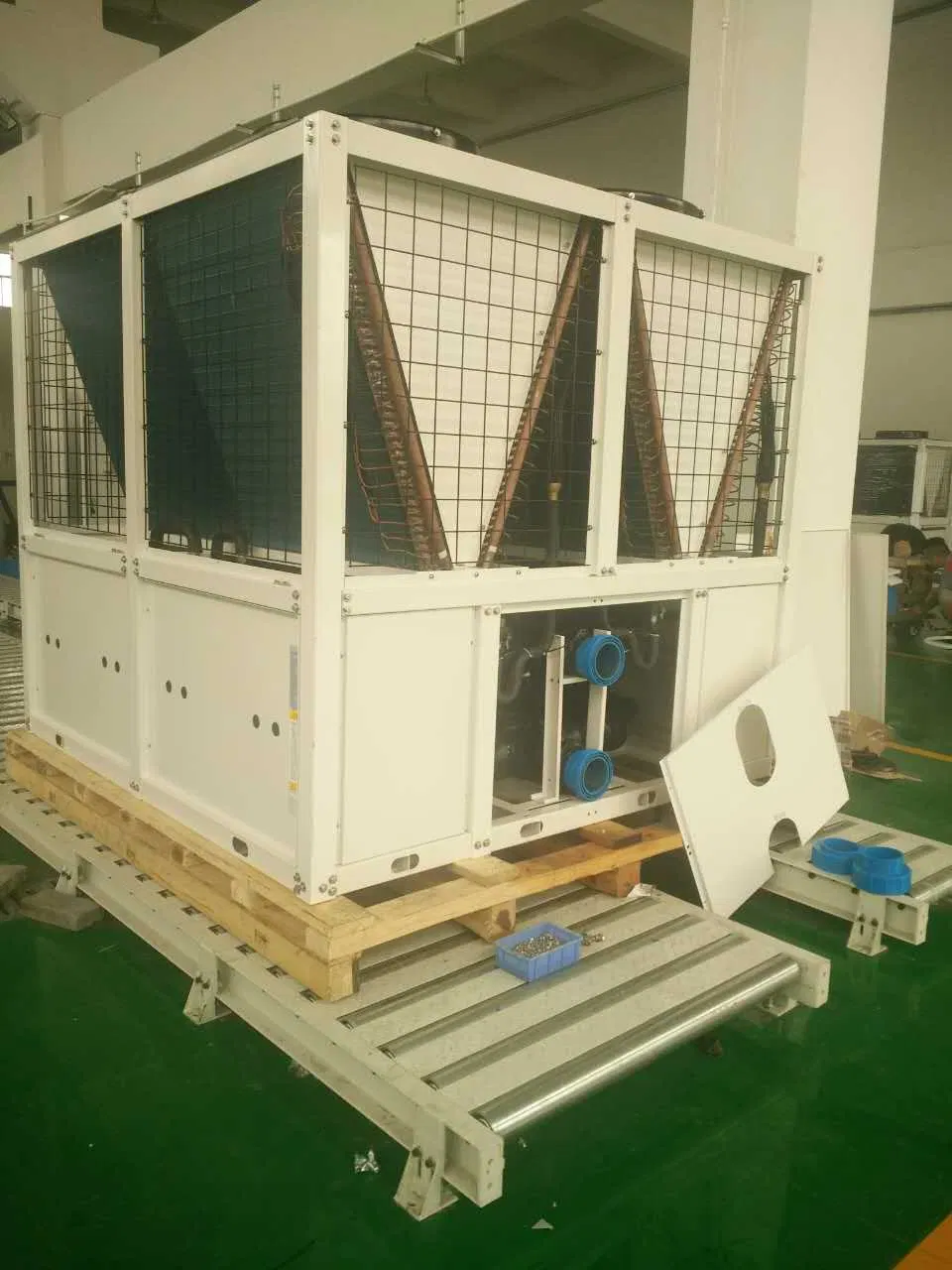

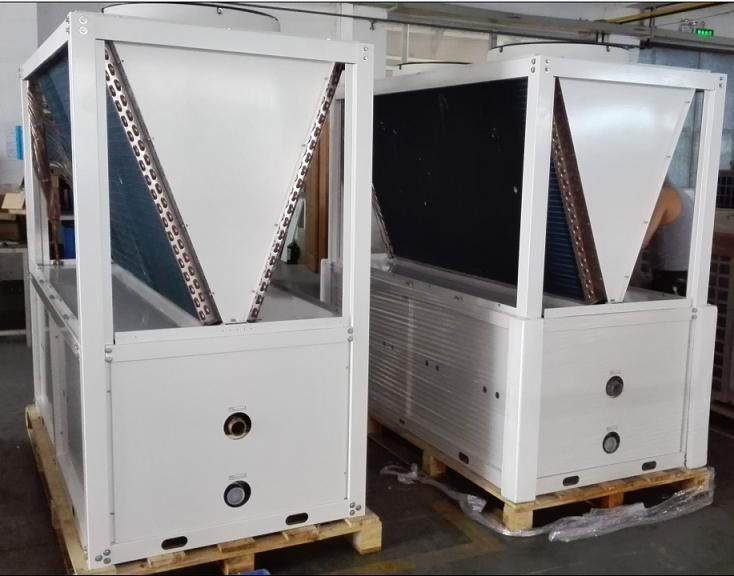

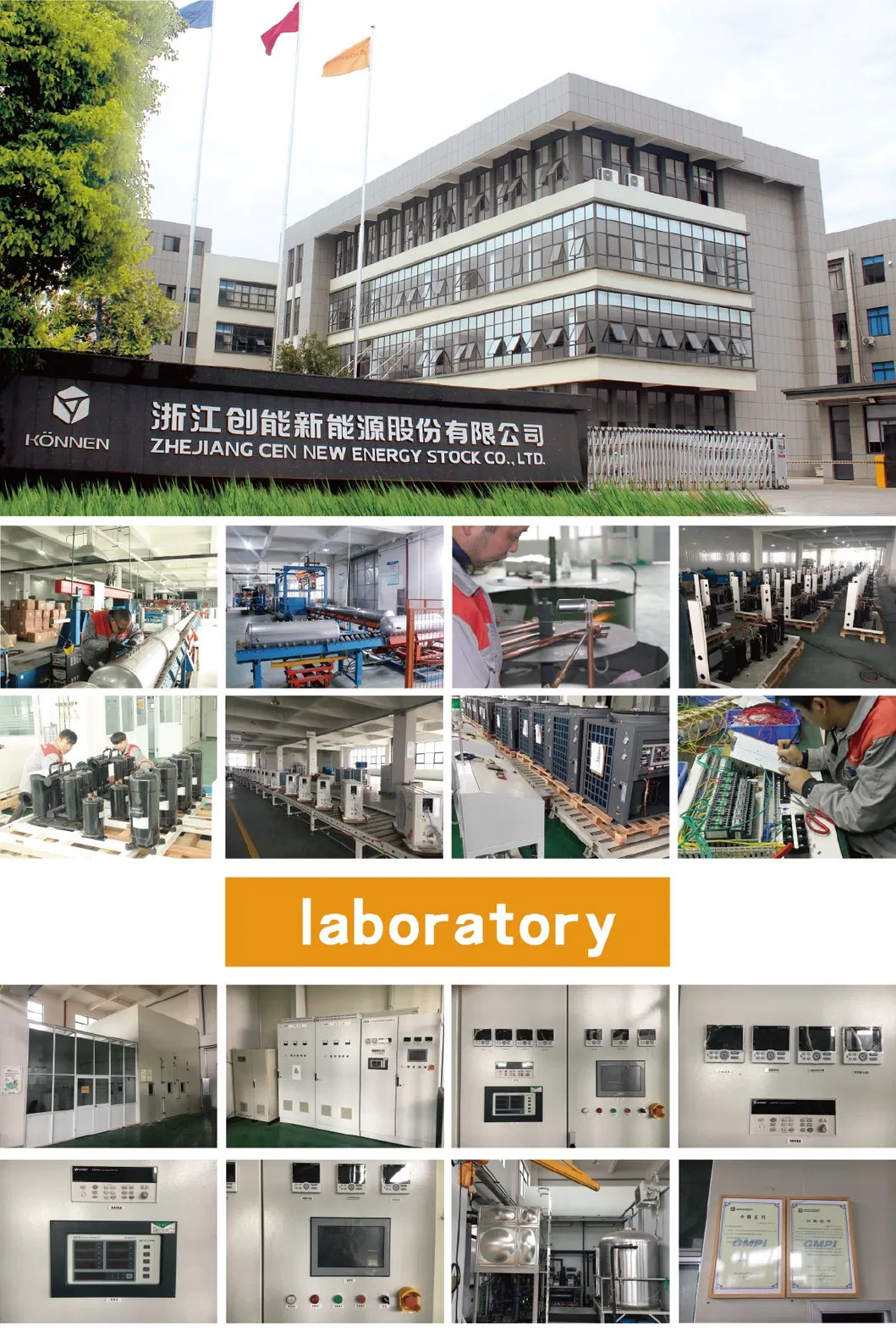

Production & Quality Showcase

Technical Parameters

Model Series		SP2.5PS-H2	SP03PS-E3	SP05PS-E5	SP10P-C24	SP20P-C48	SP30P-C48	SP48P-C96
Rated heating capacity	kW	12	14	24	48	95	145	230
Rated input power	kW	2.11	2.45	4.14	8.14	16.10	25.11	39.65
COP	/	5.59	5.71	5.80	5.90	5.90	5.77	5.80
Power supply	-	1N 220V/50Hz			3N 380V/50Hz
Compressor Type	-	Rotor	Fully closed scroll type
Water Exchanger	-	Titanium tube heat exchanger
Noise	DB(A)	≤50	≤55	≤63	≤65	≤70	≤73	≤78

Testing Conditions:
1. Ambient temp.(DB/WB): 24ºC/19ºC, Water temp.(In/Out): 26ºC/28ºC
2. *Ambient temp.(DB/WB): 15ºC/12ºC, Water temp.(In/Out): 26ºC/28ºC

* Parameters based on Refrigerant R410A. Specifications may be updated without prior notice.

Frequently Asked Questions

What type of compressor is used in these heat pumps?

We use world-famous brands such as Sanyo, Panasonic, and Copeland compressors to ensure high efficiency and long-term reliability.

Is the heat exchanger suitable for salt water pools?

Yes, we use the Chinese No.1 brand "Gimleo" Titanium tube heat exchanger, which is highly resistant to corrosion from pool chemicals and salt.

What safety protections are integrated into the system?

The units include high/low pressure protection, anti-freezing protection, high temperature protection, water flow protection, and phase protection (for 3-phase models).

How long is the warranty period for this product?

We provide a standard warranty of 24 months after the delivery date for our swimming pool heat pump units.

Can you provide custom manufacturing (OEM)?

Yes, we supply full OEM services including custom configurations, branding, and technical specifications to meet your project needs.

What is the typical lead time for an order?

The standard delivery time is approximately 20 to 25 days following the receipt of the advance payment.
