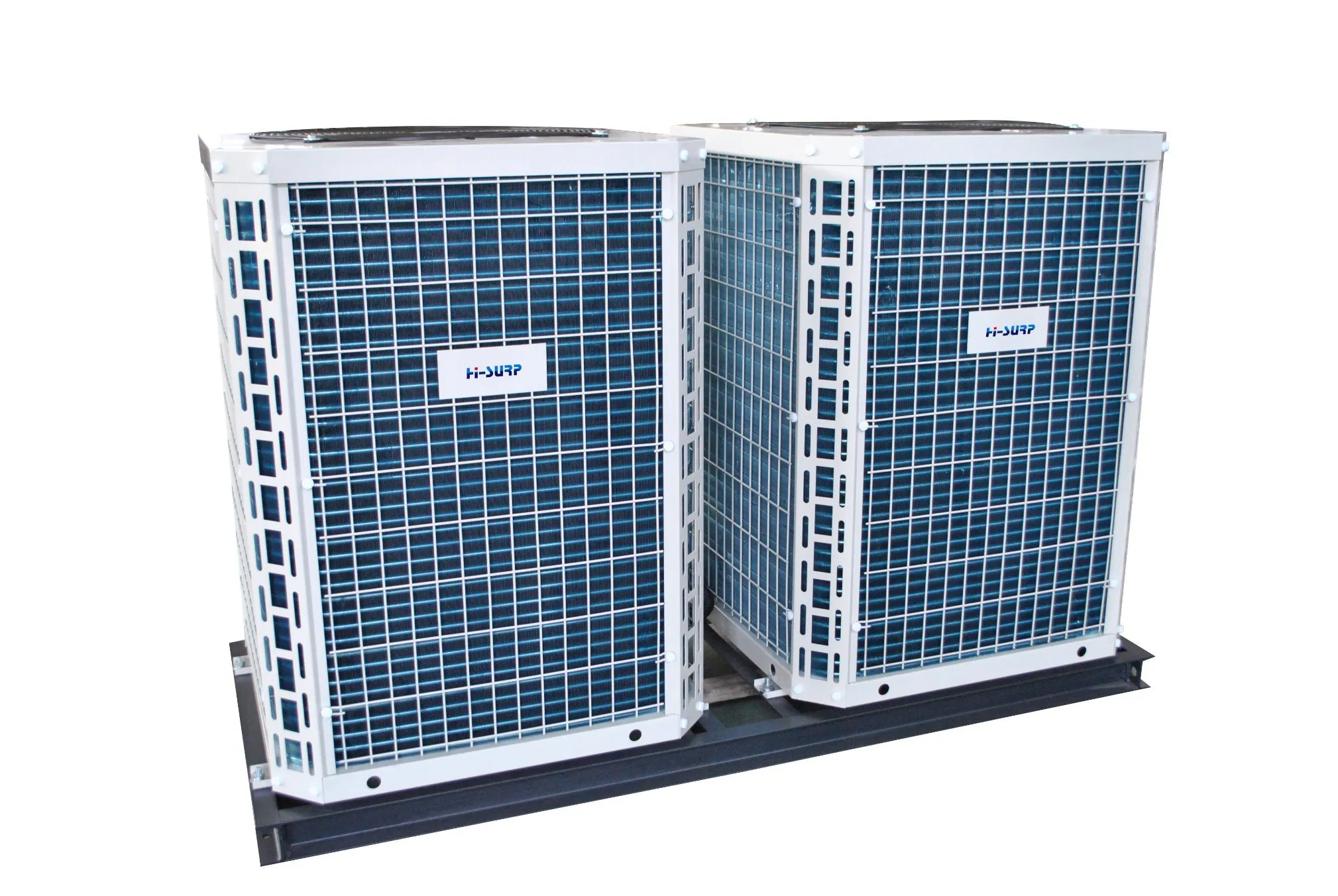

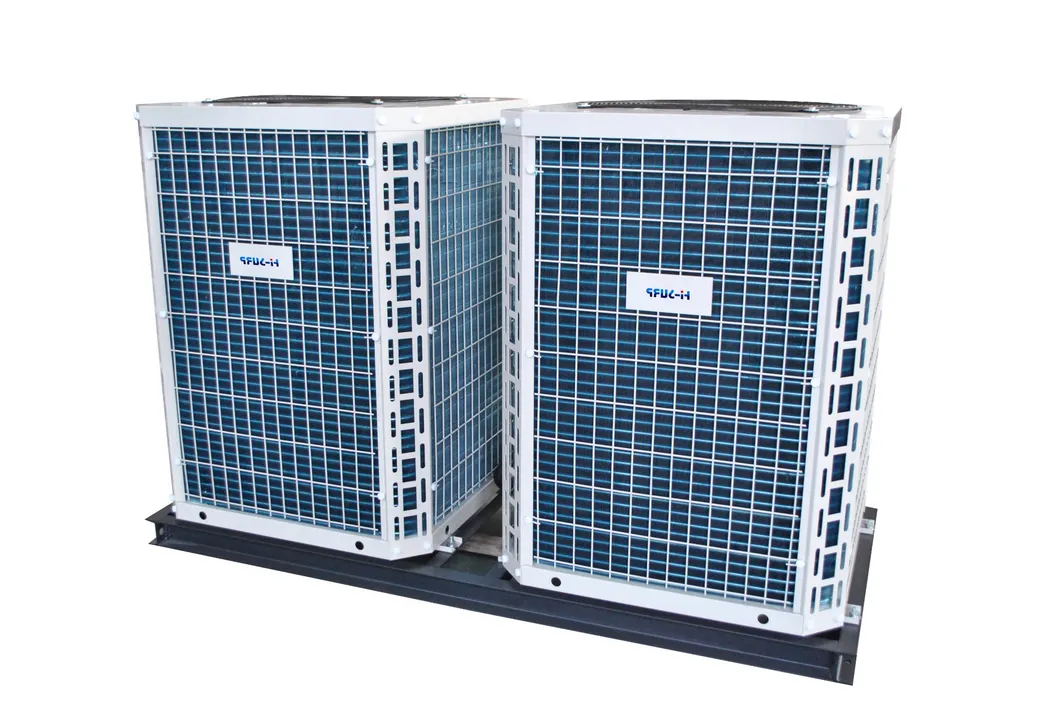

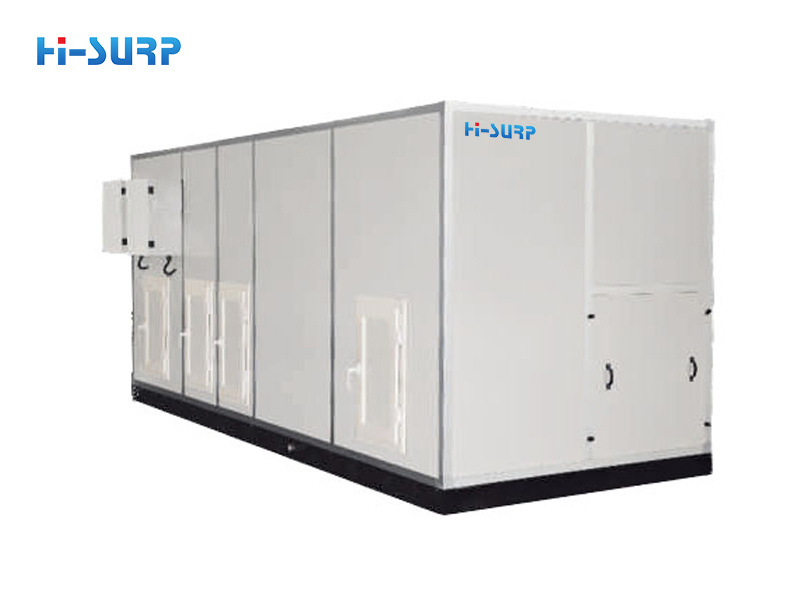

Air Source Multi Function Heat Pump for Hot Water Heating and Cooling

Customization:	Available
After-sales Service:	Within The Warranty to Provide Free Accessories
Warranty:	15 Months After Leaving The Factory

Technical Specifications

Model NO.

HYKN-15E

Type

Swimming Pool Heat Pump

Air Tube Material

Galvanized Sheet

Operating Voltage

380/400 VAC

Application

Indoor Swimming Pool

Lifetime

>20 years

Certification

RoHS, ISO, CE, CCC, UL

Cooling Capacity

24.5kw-195kw

Heating Capacity

29kw-255kw

Compressor Type

Flexible Eddy / Scroll

Refrigerant

R22, R407c, R410A, R134A

Heat Exchanger

Titanium Tube PVC Casing

Product Overview

The Air Source Multi-Function Heat Pump is an advanced solution for hot water heating and cooling, specifically designed for indoor pools.

Core Features

💧 Dehumidifying

Reduces indoor humidity and dries the air.

🔥 Air Heating

Maintains comfortable indoor air temperatures.

🌊 Water Heating

Keeps pool water at optimal temperatures.

🍃 Fresh Air

Continuous supply of fresh outdoor air.

⚙️ CAREL Controller

Ensures stable and reliable unit operation.

Detailed Technical Introduction

Operational Principle

The unit operates by recovering heat from evaporated pool water. Humid air passes through an evaporator where water vapor condenses, drying the air and capturing latent thermal energy. This energy is then repurposed to heat the pool water and the indoor air through a high-efficiency refrigeration cycle.

Premium Construction

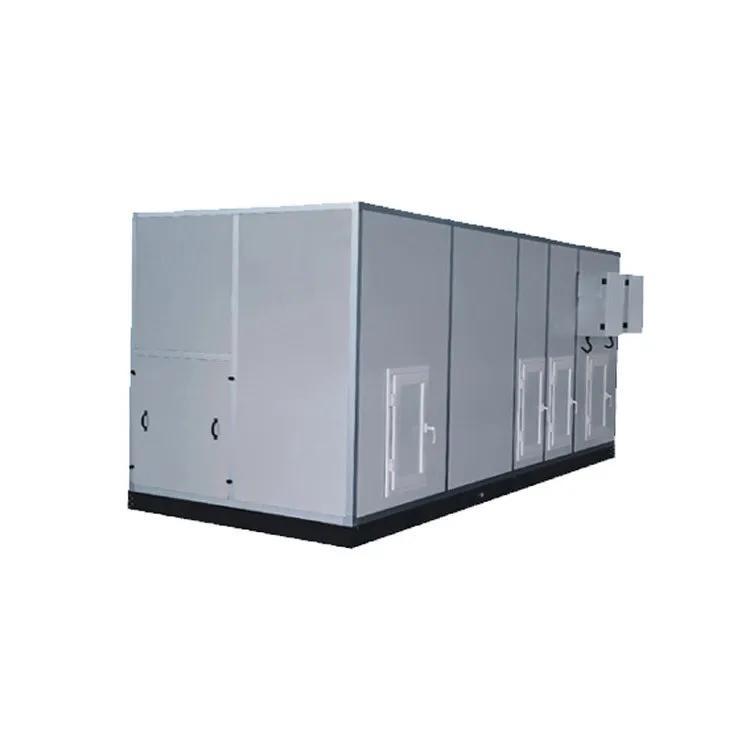

The cabinet features anodized profiles with anti-oxidation properties and heat-insulating rubber strips to eliminate cold bridges. Panels are double-layered with polyurethane foam for superior insulation and low air leakage.

High-Performance Components

Heat Exchanger: Titanium alloy for water side; anti-corrosion aluminum fins and copper pipes for air side.
Compressor: Efficient scroll compressor mounted on rubber shock mounts for low noise and vibration.
Fans: Multi-wing centrifugal double-suction impellers for high-volume air supply without noise.
Sensors: Imported polymer humidity sensors and platinum thermal resistance for precise control.

Manufacturing Excellence

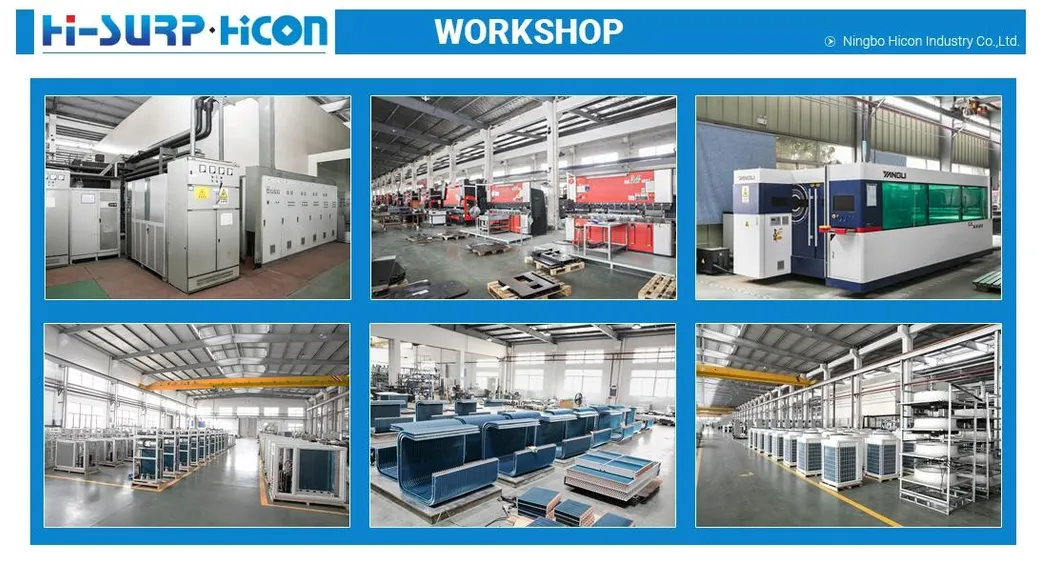

Equipped with domestically advanced industrial manufacturing lines, enthalpy difference test rooms, and noise vibration labs. The facility holds certifications including ISO9001, ISO14001, ISO45001, CE, and UL.

Frequently Asked Questions

What are the primary functions of this heat pump unit?

The unit provides four integrated functions: dehumidification, air heating, pool water heating, and fresh air supply.

Is the unit resistant to pool chemicals and corrosion?

Yes, the pool water heat exchanger is made of titanium alloy, and the air side uses high-corrosion-resistant aluminum fins to withstand the harsh environment of indoor pools.

What is the expected lifespan of the HYKN-15E model?

The unit is designed for heavy-duty industrial and commercial use with a rated lifetime of over 20 years.

Can the unit operate in different seasonal modes?

Absolutely. The intelligent control system adjusts operation modes for spring, summer, autumn, and winter to ensure maximum energy efficiency year-round.

What type of electrical components are used?

The unit uses high-standard low-voltage electrical components complying with IEC60947-4-1 standards, featuring a mechanical life of up to 20 million cycles.

What control system manages the heat pump?

It utilizes a CAREL brand intelligent controller with a large LCD backlight display, multi-level password protection, and expert fault diagnosis.
